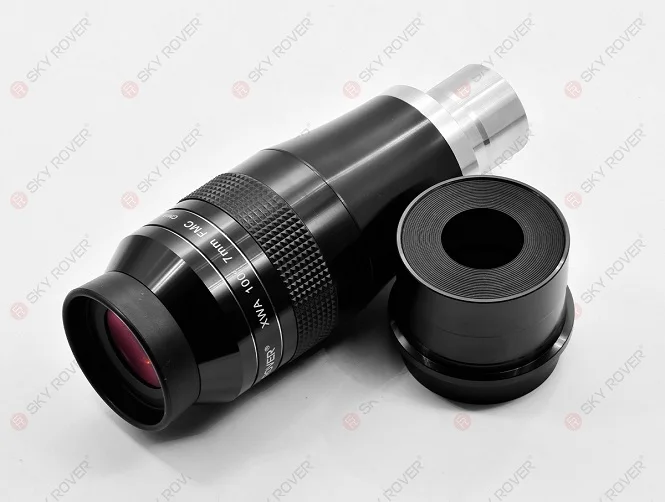

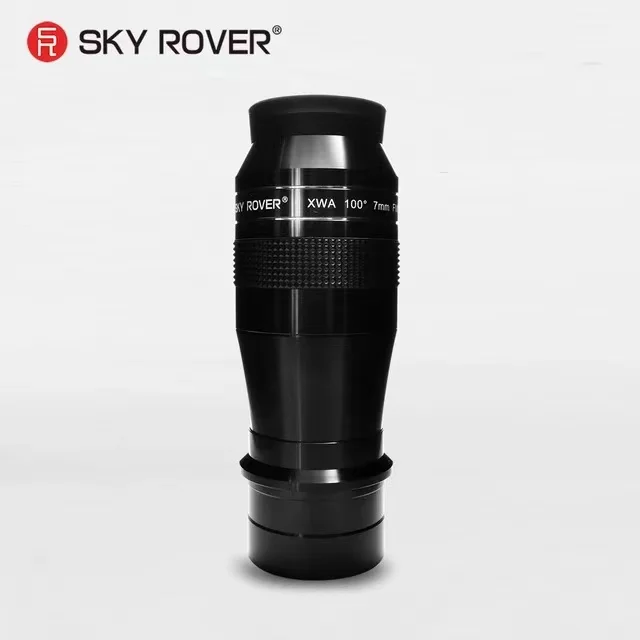

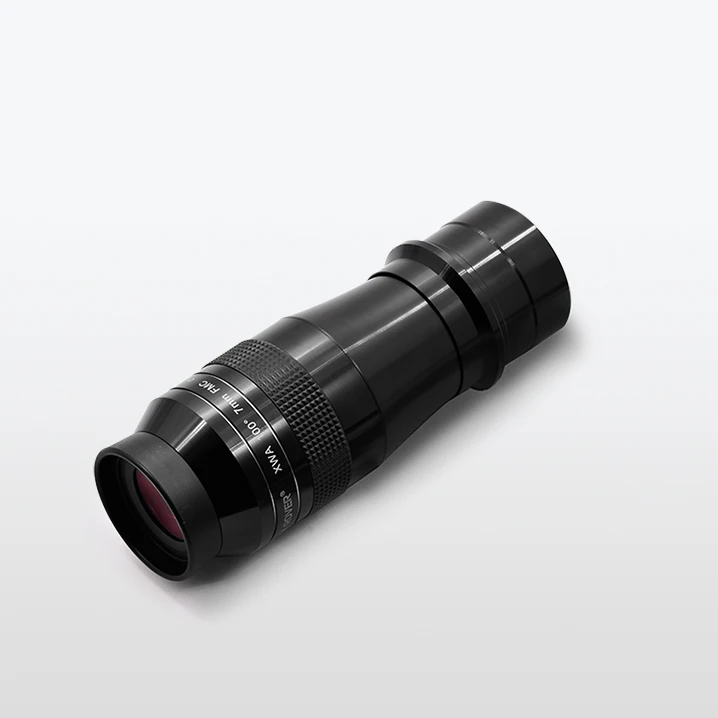

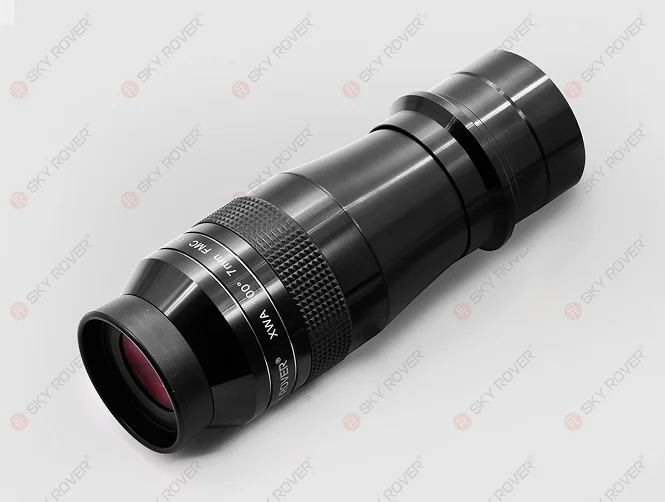

XWA7mm 100 Degrees
Ultra Wide Angle Eyepiece
In 2021, SKY ROVER Optics introduced a new version of XWA7mm 100°super wide-angle eyepiece.
The lower part of it is made of stainless steel, and its weight and volume are reduced, which is more suitable for use in giant binoculars and other binoculars.
XWA7mm eyepiece has a large field of view of 100 degrees, and the lens are coated FMC, which can effectively reduce color difference. The blackening edge of the lens can effectively control the stray light transmission. Each eyepiece is equipped with a 2-inch to 1.25-inch adapter, which is more convenient to use.
The focal length of the eyepiece is 7mm (smaller), and when the eyepiece is matched with the main mirror, a larger magnification can be obtained. Both planetary observation and deep space observation will get ideal results.
* Please consult customer service when matching with the main mirror.
Magnification = objective lens focal length/eyepiece focal length.
Specifications
Brand: SKY ROVER Coating: Fully multi-coated
Focal Length: 7mm Edge coating: edge blackened to control stray light
Eye Relief: 13mm FOV: 110 Degrees
Exit diaphragm (diameter): 12.3mm Size: maximum diameter 58mm
Optical structure: 9 elements in 6 groups Weight(without cover): 468g
Interface size: 1.25-inch and 2-inch interfaces, with standard 1.25-inch and 2-inch filter threads
Product Show

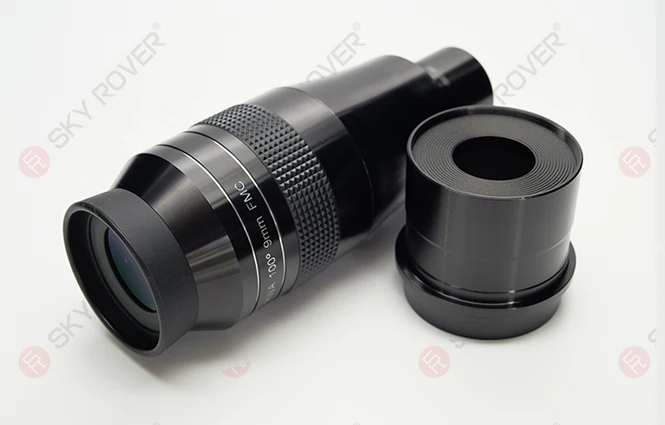

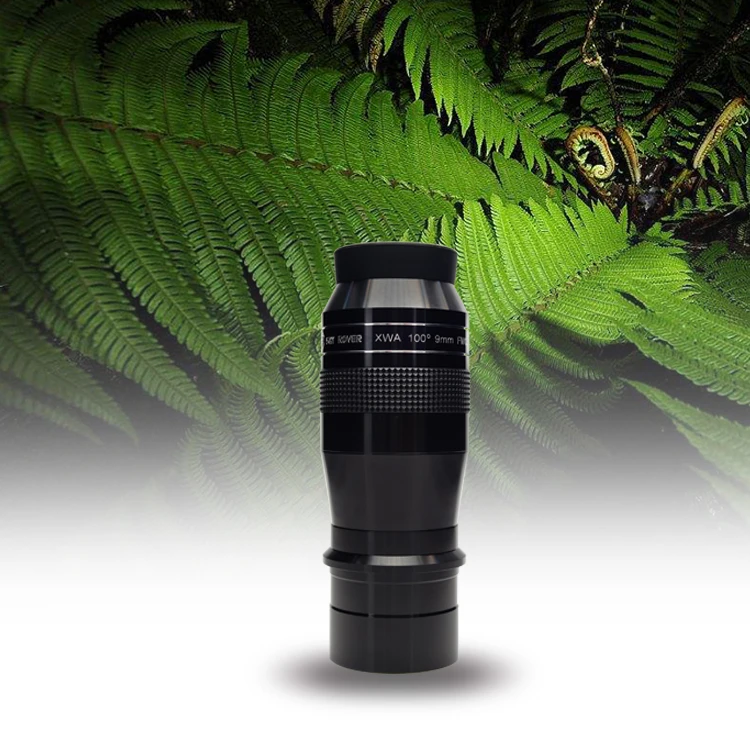

XWA9mm 100 Degrees
Ultra Wide Angle Eyepiece
Specifications
Brand: SKY ROVER Coating: Fully multi-coated
Focal Length: 9mm Edge coating: edge blackened to control stray light
Eye Relief: 15mm FOV: 100 Degrees
Exit diaphragm (diameter): 15.7mm Size: 55x160mm (WxH)
Optical structure: 9 elements in 6 groups Net Weight: 830g
Interface size: 1.25-inch and 2-inch interfaces, with standard 1.25-inch and 2-inch filter threads
Product Show

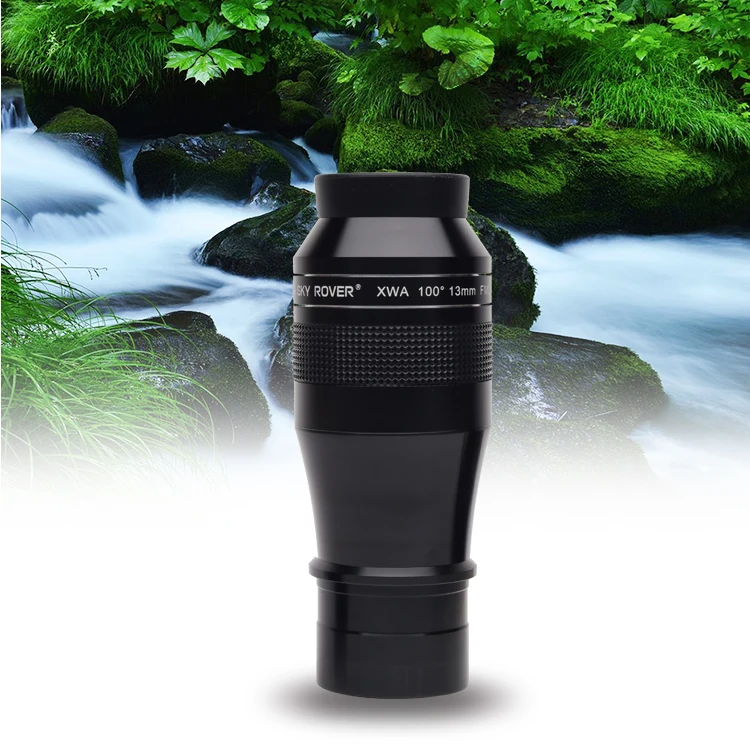

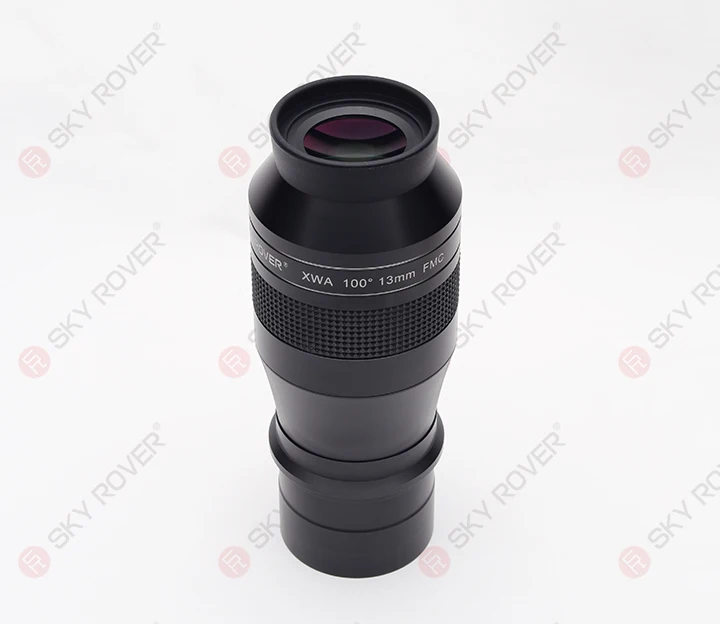

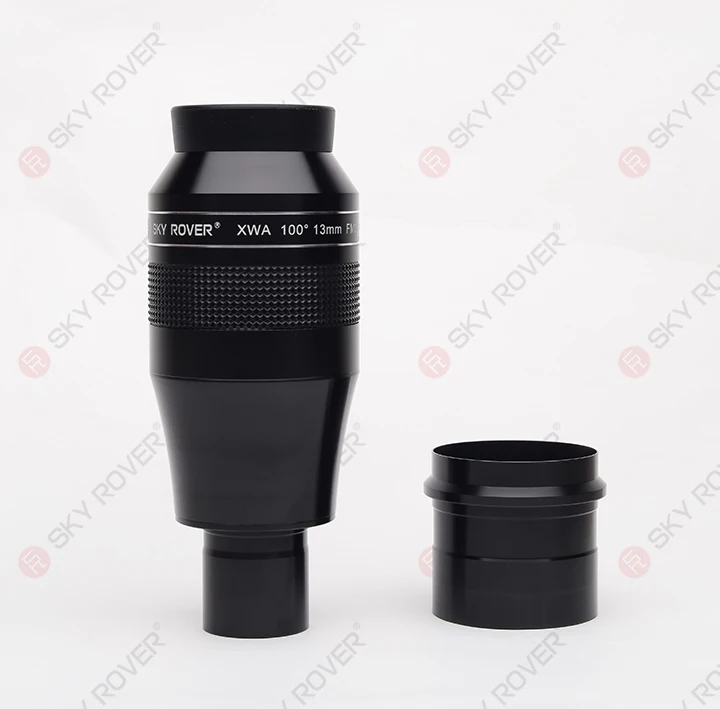

XWA 13mm 100 Degrees
Ultra Wide Angle Eyepiece
After optimized design, the XWA13mm eyepiece is specially optimized for binocular use, with 1.25-inch /2-inch dual interfaces. The maximum length of the eyepiece is 62.5 mm, which can meet the needs of most double pupil distances. The exit pupil distance is as long as 13 mm, which makes observation comfortable and makes it easier to find eye points. On most telescopes, XWA13 can provide sharp imaging from middle to edge. XWA13 is equipped with foldable eye mask and M44.5×0.75 thread, which makes it easy to connect with other accessories.
Specifications
Brand: SKY ROVER Coating: Fully multi-coated (FMC)
Focal Length: 13mm Edge coating: edge blackened to control stray light
Eye Relief: 13mm FOV: 100 Degrees
Exit diaphragm (diameter): 22.6mm Size: 62.5x153mm (WxH)
Optical structure: 9 elements in 6 groups Net Weight: 480g
Interface size: 1.25-inch and 2-inch interfaces, with standard 1.25-inch and 2-inch filter threads
Product Show

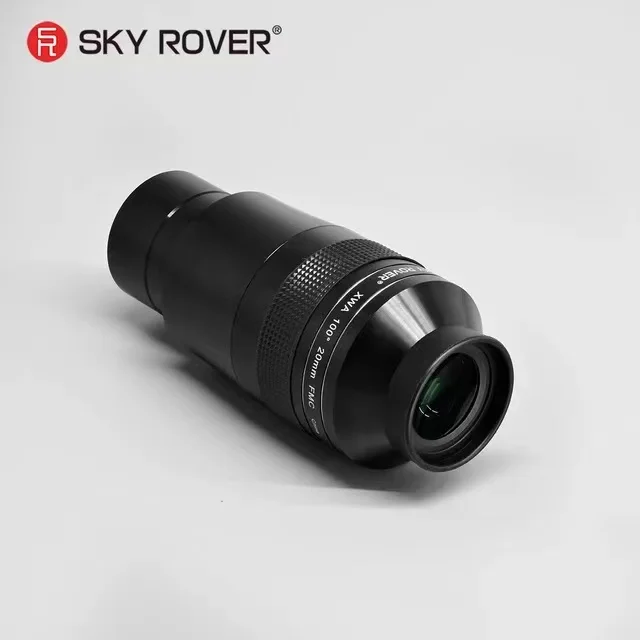

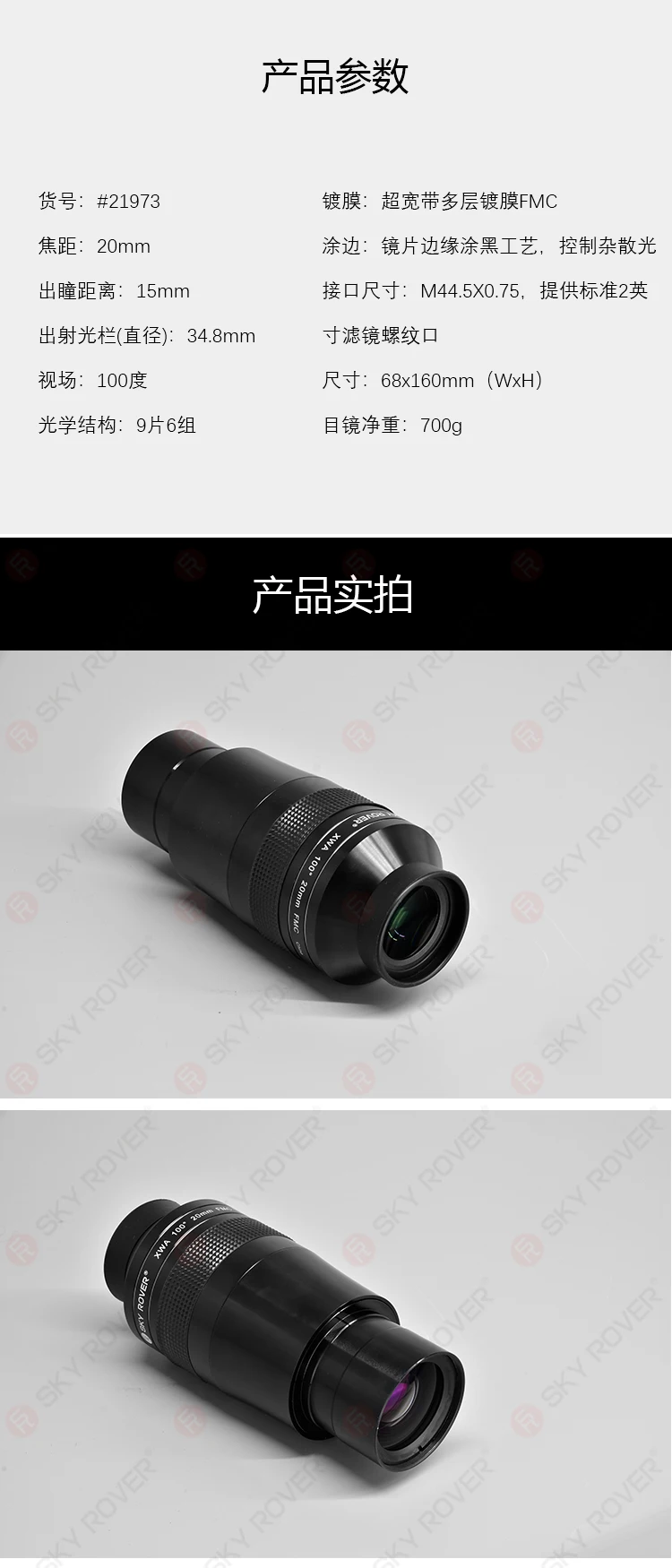

XWA 20mm 100 Degrees
Ultra Wide Angle Eyepiece
Focal length: 20mm
Interface size: 2inch
Exit pupil distance: 15mm
Field of view: 100 degree
Size: 75×160mm (WxH)
Optical structure: 9 elements in 6 groups
Coating: Ultra-wideband multilayer coating
