Products Description

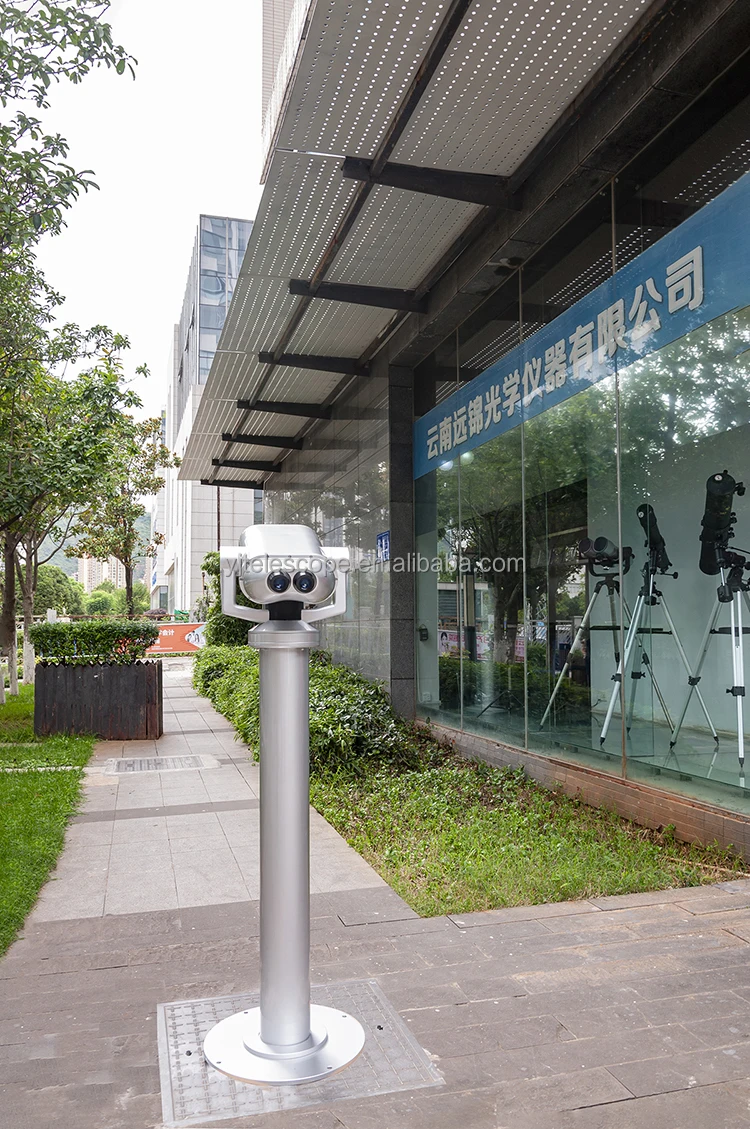

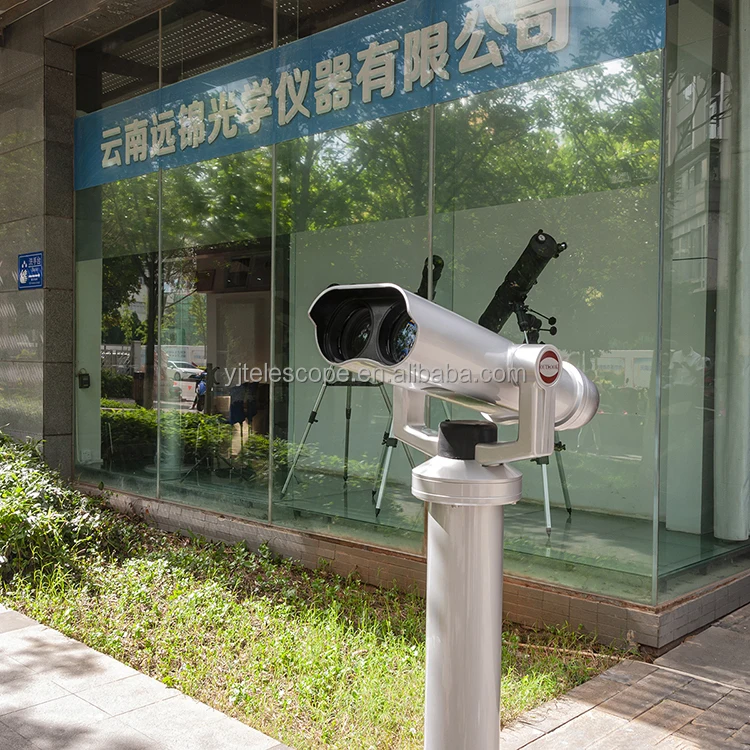

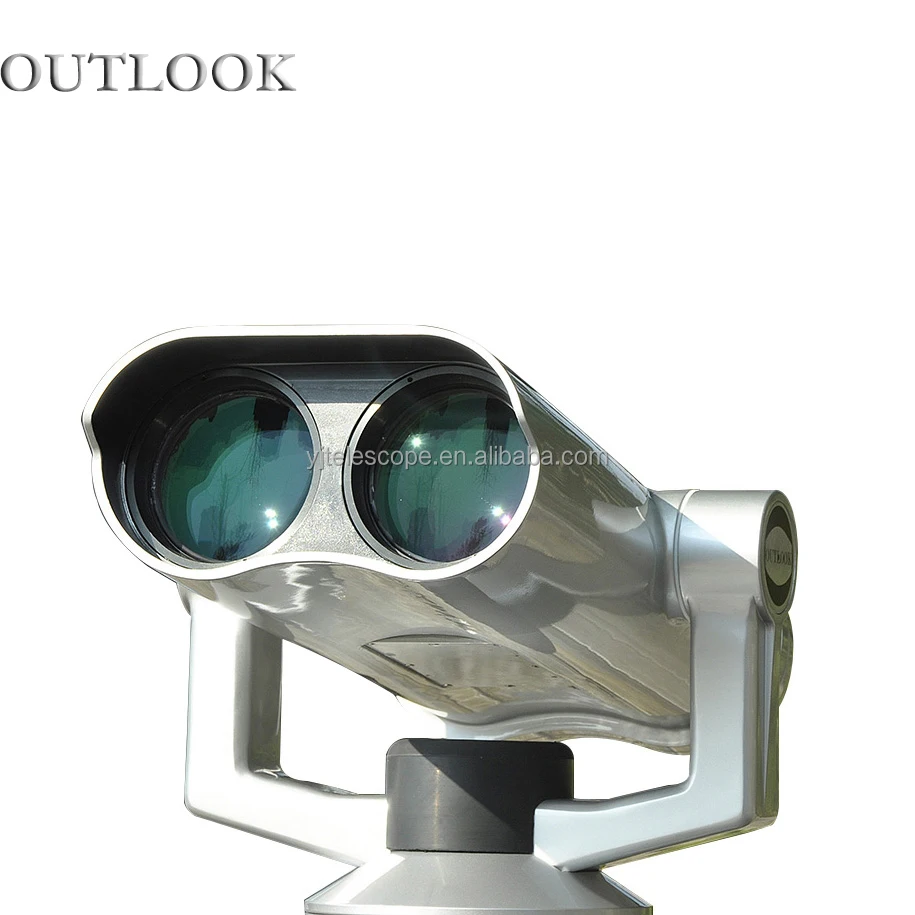

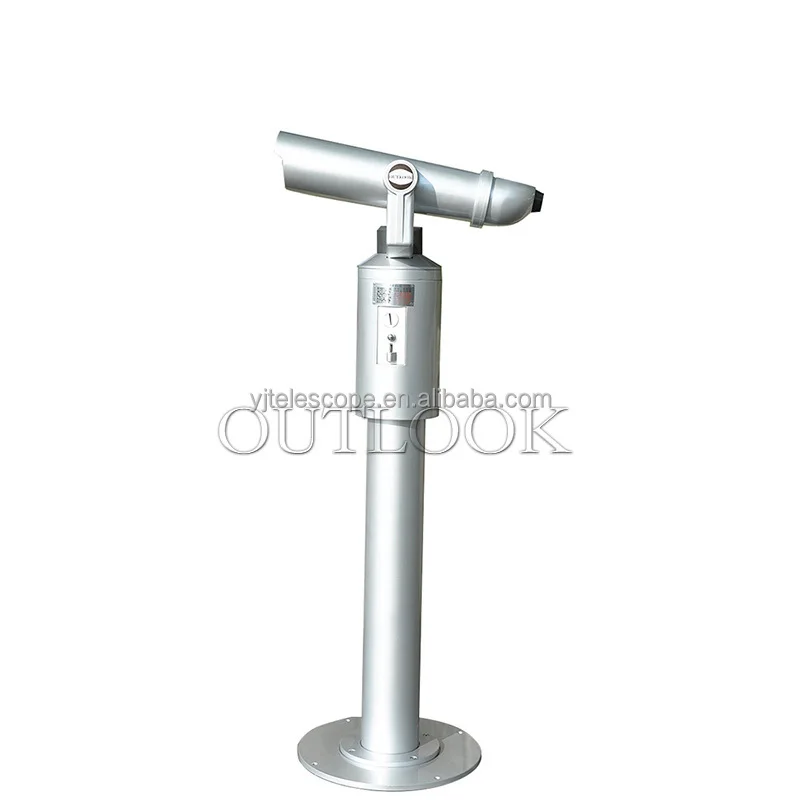

New design optical coin operated binocular and telescopes binoculars
YJT-3C coin-operated telescope is designed for scenic management, fully meet the needs of tourists watching the long-range design, suitable for non-professional tourists often use. YJT-3C coin operated telescope is committed to the simple operation performance, excellent optical performance, electrical performance. Stable business to create more value. Products have a strong structural performance, innovative design, high-cost advantage. Using the latest optical imaging system, auto focus, convenient and clear to the customer with a clear visual experience. The product parts are made of metal die-casting mirror body, wear-resistant nylon material, high-elastic wheel material, paint appearance, high-grade optical glass, stainless steel screws. Each part uses the best material. You can easily install, set up the telescope, and use the telescope to create benefits.
The main design standards used are: GB / T17117 prism binocular, GB1185 optical surface defects, GJB1240 telescope common specifications, GJB150 mil-equipment environmental testing methods and MIL-STD-810 test methods.
Product Paramenters
|
Model
|
YJT-3C
|
|
Type
|
25×100
|
|
Brand
|
OUTLOOK
|
|
Structure
|
Double eyepiece and objective lens
|
|
Magnification
|
25×
|
|
Exit pupil diameter
|
Φ4mm
|
|
Exit pupil distance
|
14mm
|
|
Field of view
|
2°30′(45m/1000m)
|
|
Resolution
|
2.4″
|
|
Objective diameter
|
Φ100mm
|
|
Eye distance
|
63mm
|
|
Diopter
|
Fixed-focus (0.75-infinity)
|
|
Power
|
DC4.5V (3pcs 18650 battery, can be used more than 1 year)
|
|
Continuous standby time
|
12 months
|
|
Continuous using time
|
3months (Depends on the battery capacity and using frequency)
|
|
Control time adjustment
|
5S-9995s continuous adjustment. The factory defaults to 60 seconds
|
|
Other functions
|
1.The coins are automatically accumulated.
2.Display function. When flashing “-” warning on the display screen, the battery is too low. Please replace the new battery. 3.Coin counting function. When the number of coins accumulated in real time and will not be deleted, turn off the power supply. 4.Identify different metal coins. When the diameter and the coin are different from the activation coin thickness, the coin cannot be put, you can press the button to refund and retrieve the coin. 5. The initial setting can be installed at least coins (RMB) 2500, coins can be set at random according to customer requirements, but can only use the same kind, the same value coins (10 Fen, 50 Fen, one yuan, etc.). The size of the general one yuan is: diameter 25mm, thickness 2mm, weight 6g. |
|
Operating temperature
|
-15 ℃ ~ + 50 ℃
|
|
Rotate horizontally
|
Unlimited free rotation
|
|
Elevation
|
± 30°
|
|
Waterproof
|
Outdoor waterproof
|
|
Dimension (Binocular body)
|
620mm(length)×360mm(width)×260mm(height)
|
|
Total height
|
1400mm
|
|
Net weight
|
68kg
|
|
Carton size (A set of three pieces)
|
Mainframe:720×400×460(26kg)
Chassis:550×550×100(29kg) Frame:1200×260×260(19kg) |

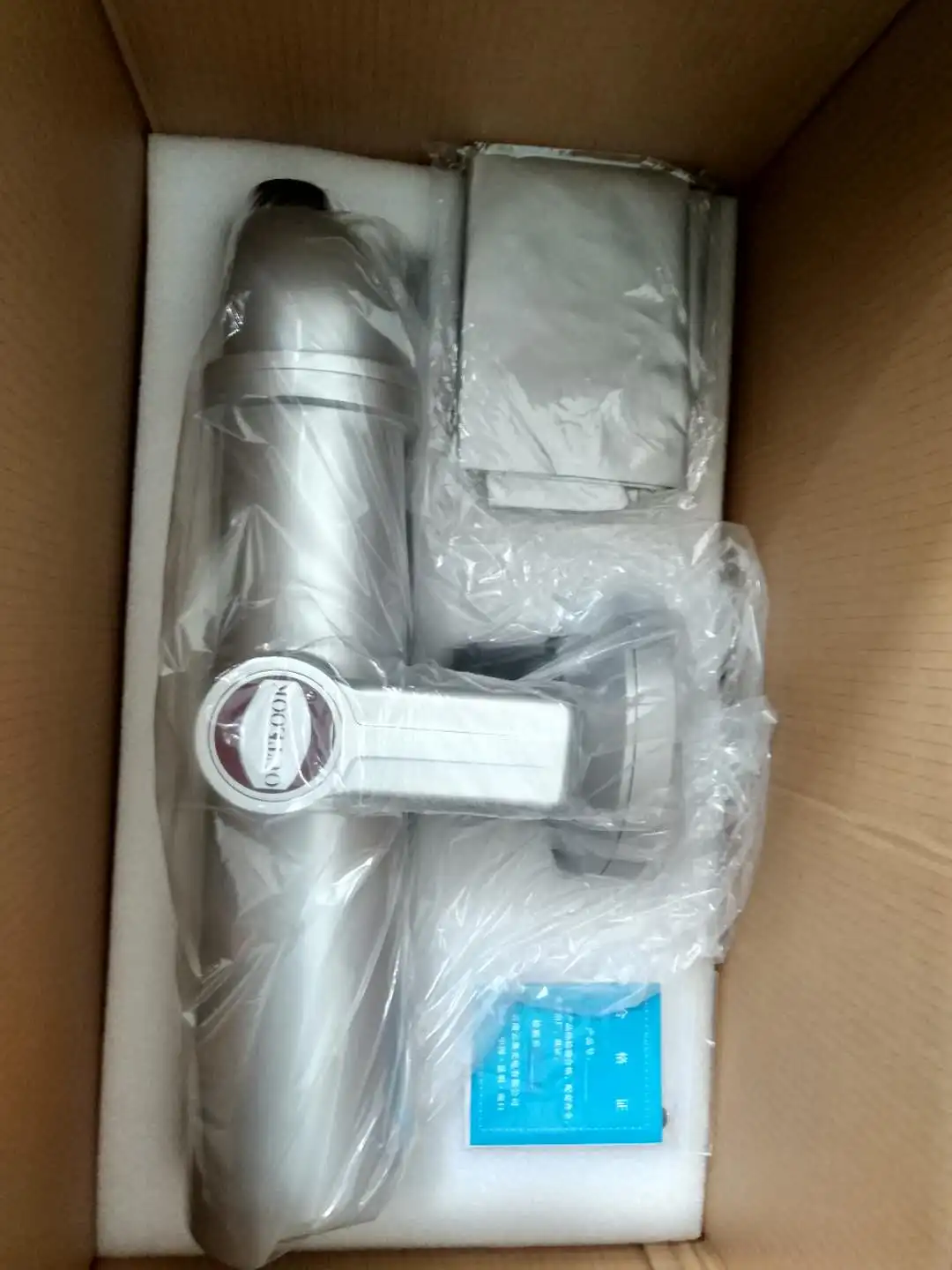

Product Packaging & Delivery
Box, Carton
*Strong carton packaging
*Suitable for long distance travel
* Good resistance to moisture and shocks.
*Land /ocean/ air-shipping Customized to your needs.
Customer Services
|
Fast sample arrangement
|
OK
|
|
Sample Charges return
|
OK
|
|
OEM and Logo
|
OK
|
|
On time Delivery
|
OK
|
|
Reflex able payment
|
OK
|
|
24h consulting and after-sale service
|
OK
|
|
Packages tracking & arrival reminding
|
OK
|
|
The quality-related compensation
|
OK
|

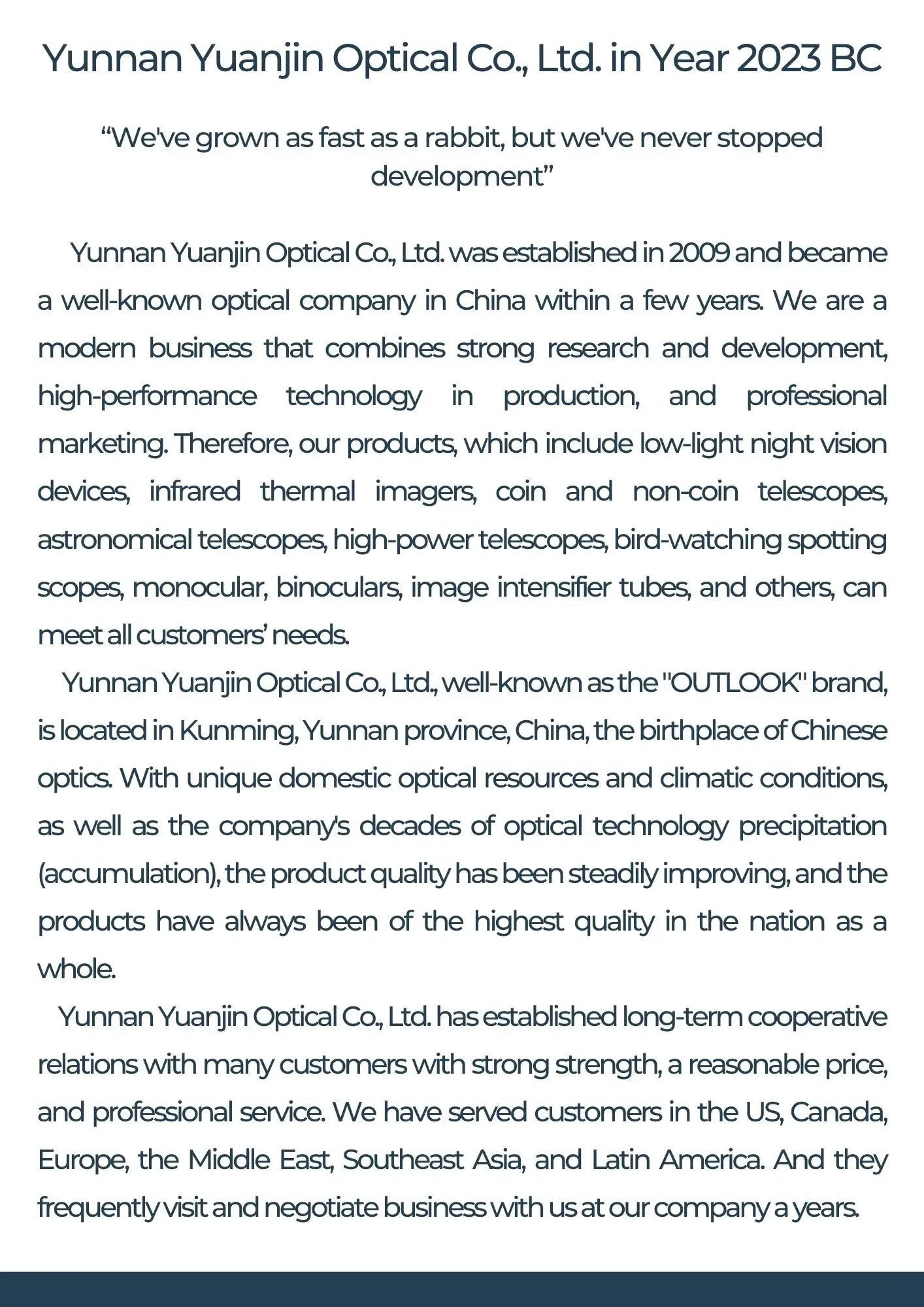

Company Profile
