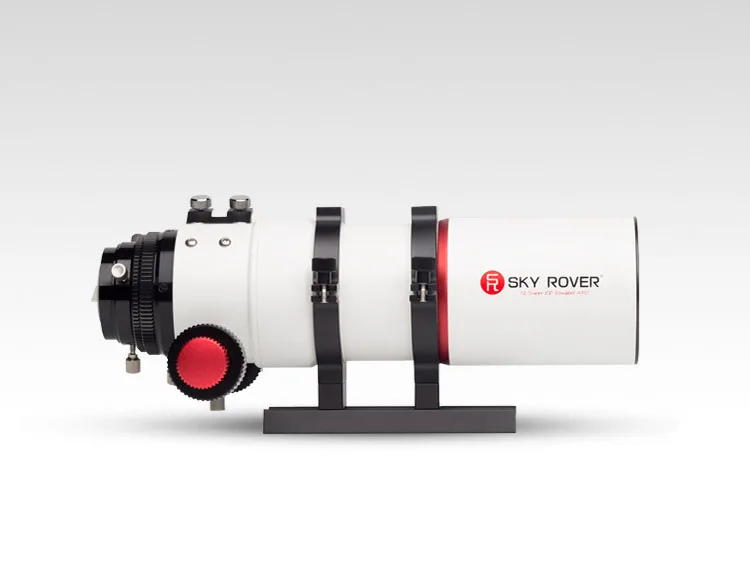

72 ED APO
Multifunctional Astronomical Telescope
This telescope adopts the double hoop mode, which is convenient for astronomical customers. For some customers who need to use the camera mount, you can also use the arca standard quick release plate. 72ED APO adopts the standard of high-end primary telescope, and its optical quality and stray light control have been substantially improved. It can adapt to 1X special flattener to meet the imaging requirements of full frame.
72ED APO can be widely used for shooting stars, flowers, birds, etc. The lightweight telescope body of less than 2kg is very convenient to carry and use.
Optional reference for accessories

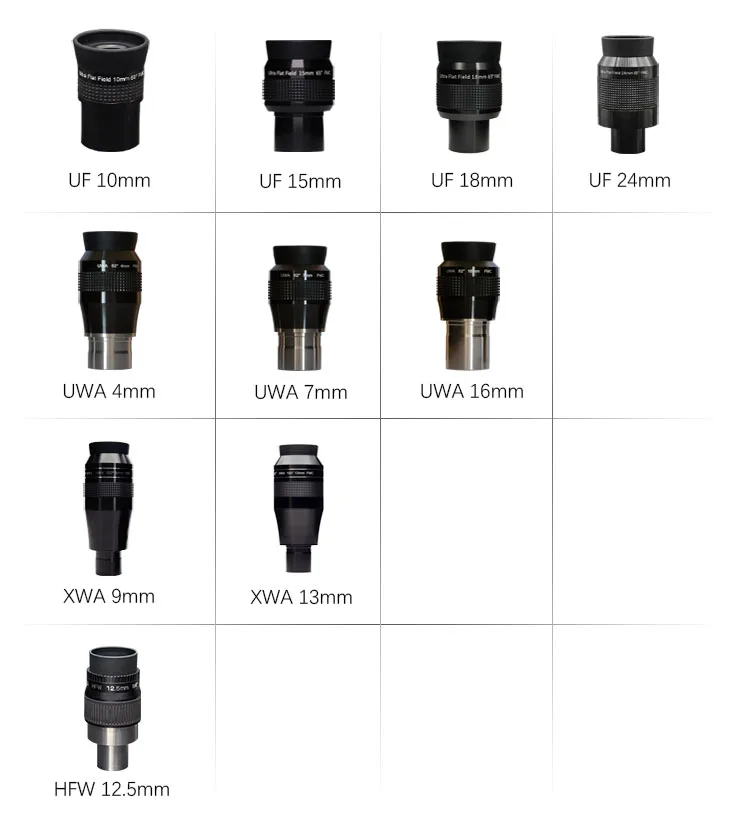

Eyepieces
Telescope Parts
1.25/2 inches Diagonal Flattener for 72ED APO
Application
*The following pictures are for reference only.
Observe the Moon
Observe the Sun
(Do not look at the sun through the telescope without a professional solar filter)
Observe the Planets
Deep Space Photography

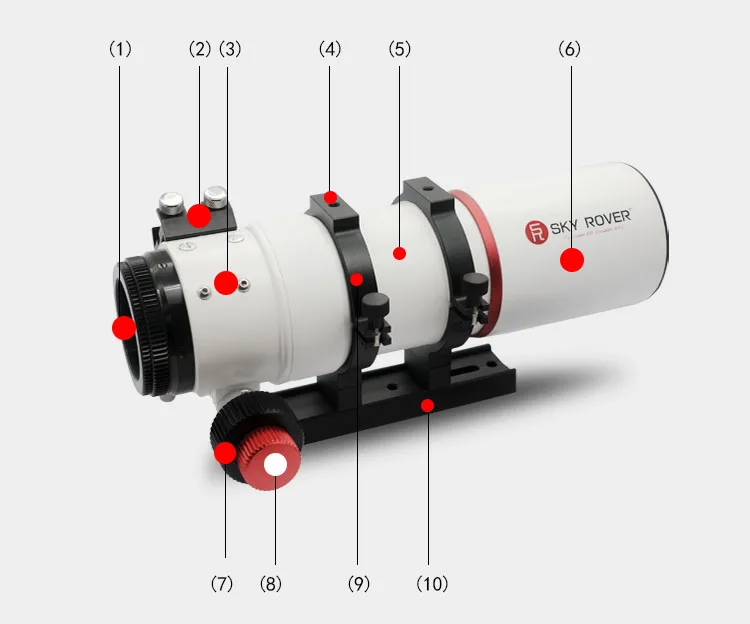

Basic Structures
(1) Eyepiece side (2) Finder base (3) Focuser (4) Hole for other parts (5)Main tube
(6) Dewshield (7) Fine focus wheel (8) Coarse focus wheel (9) Tube rings (10) Dovetail plate
Specifications
Model: 72ED APO multifunctional astronomical telescope
Diameter: 72mm
Focal length: 432mm
Focal ratio: F/6
Optics: Doublet apochromatic optical design
Coating: FMC
Focusing: 2.5-inch R&P two-speed focuser, a CAA is included, travel distance about 94mm.
Mirror body: made of aluminum alloy, tractable dewshield.
Size: about 310mm (Fully Retracted) ;about 380mm (Fully Extended)
Weight: OTA about 1.9kg (including hoop and dovetail about 2.2kg)
Standard: 2-inch to 1.25-inch adapter, L bracket, finder base.
Packaging: Full-wrapped pearl cotton protective packaging and double-layer cartons
Optional: 1.25-inch or 2-inch diagonal, 1x dedicated flattener, various astronomical standard interface eyepieces, binoviewer, etc.
Works Show

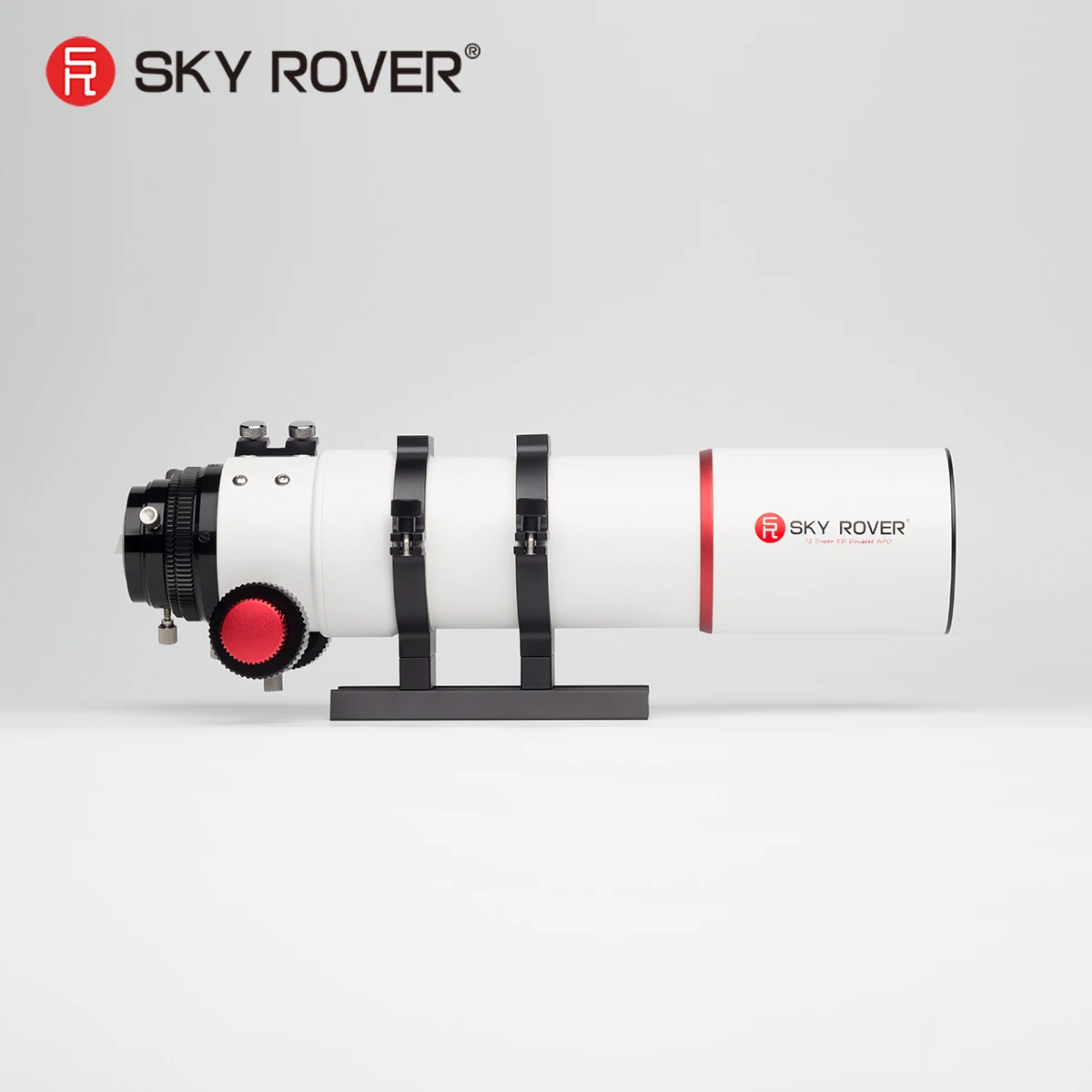

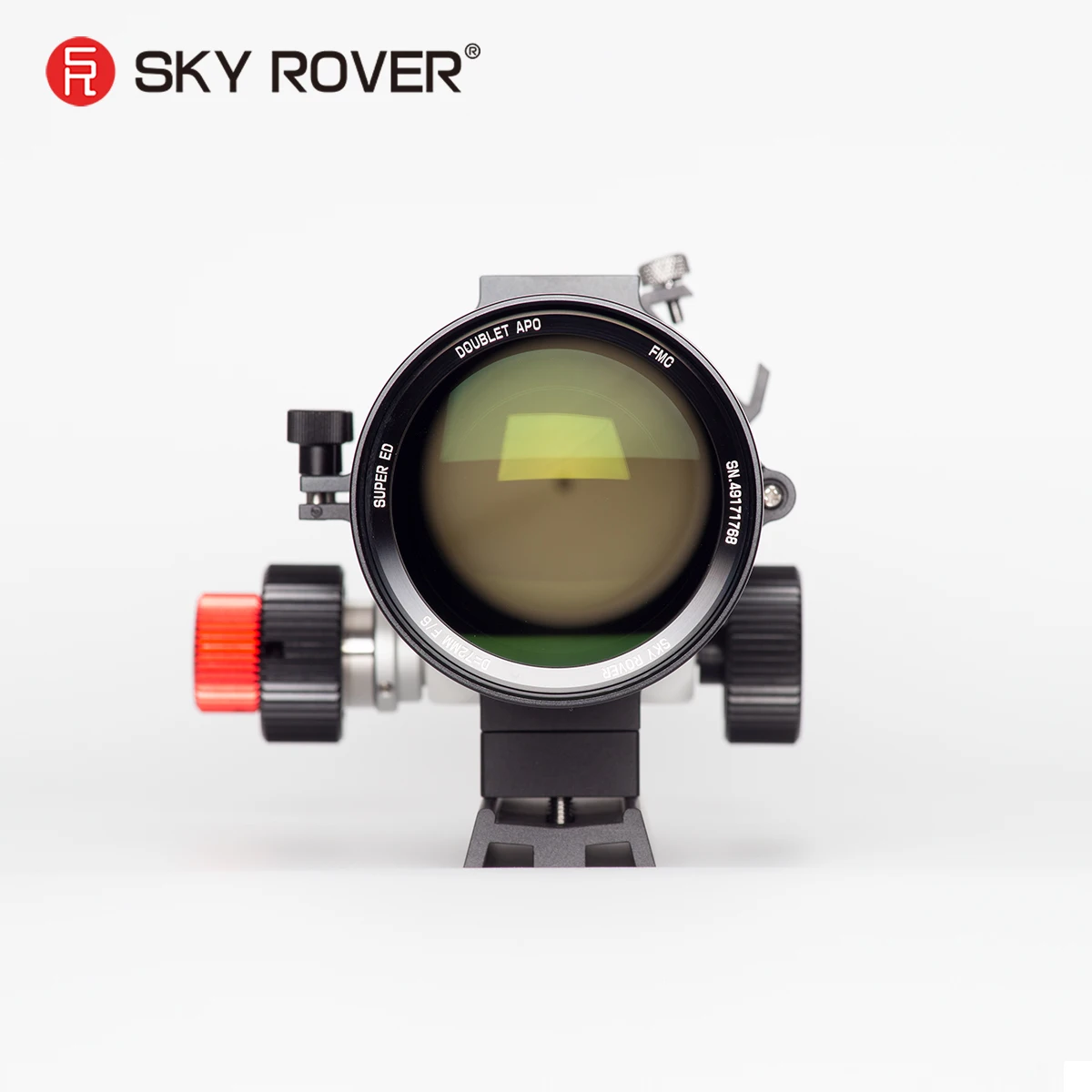

Product Show
72ED APO + 1x Photo Flattener

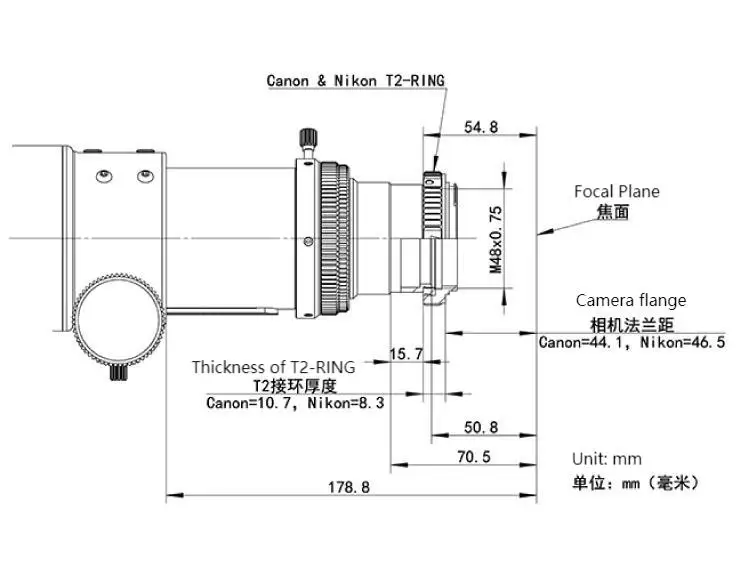

Data Diagram of Photographic Backfocus
